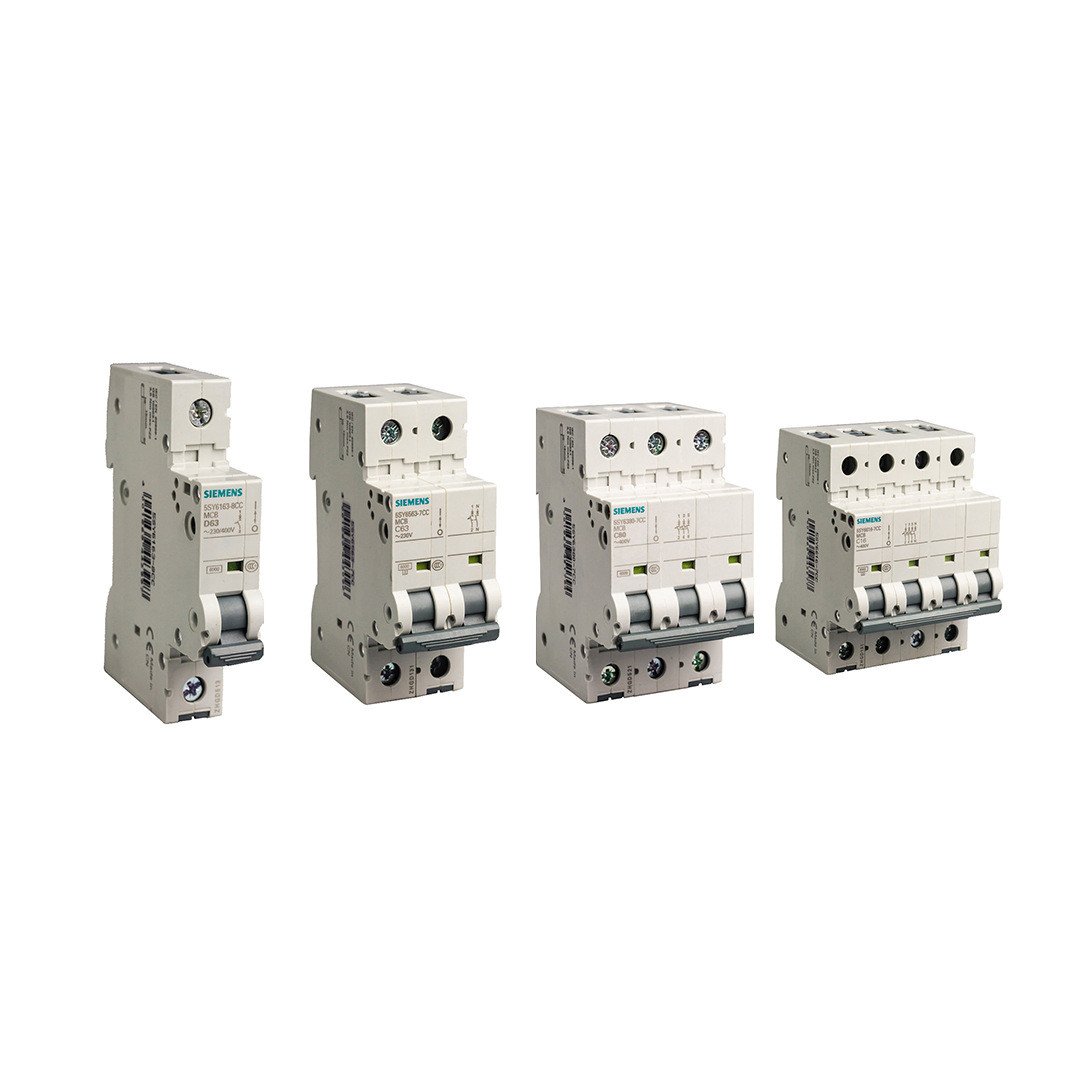

Miniature Circuit Breaker

Description

Breaking capacity: 6 (KA)
Number of poles: 2P
Instantaneous trip characteristics: C
Rated current of trip unit: 16A
Rated voltage: 400VAC (V)
Mechanical life: 20000
Wiring capacity: 35mm²
Switch width: 36mm
Frame current: 63A (A)
Rated impulse voltage: 4000V
Operation mode: automatic
Tripping method: overcurrent release
Protection type: line protection
Application scenario: terminal power distribution
Purpose: line protection
